ELEC2311 - Lecture 4
Testbenches - Slides

Design Verification

• Determines whether the design meets its specification
• Occurs during design stage, before fabrication
• Can involve simulation or prototype hardware

Manufacturing Testing

• Determines whether a fabricated device functions correctly
• Concerned with detecting manufacturing defects

---

Testbenches

A testbench is a type of design verification used for VHDL. The design being verified is called the design under test (DUT).

The testbench applies input stimuli to the DUT and allows its outputs to be observed. More advanced testbenches can automatically check DUT outputs against expected results.

The set of input values applied is known as a test vector. They can be defined directly in the testbench .vhd file or stored in a separate text file.

VHDL template for a Testbench:

Types of Testbenches

A Stimulus-Only Testbench generates and applies input signals to the DUT only. The DUT outputs must be manually checked. This method is useful for initial debugging and simple designs, but manual checking becomes inefficient as the number of test cases increase.

A Full Testbench automatically checks the DUT outputs and compares them with the expected outputs.

Delayed Signal Assignments using AFTER

The AFTER keyword in VHDL is used to schedule signal assignments at specified times. It is useful for modelling timing behaviour.

The delay specified by AFTER is not synthesisable.

signal_name <= value1 [after time1] {, value2 after time2};

The first waveform element may omit the AFTER clause, in which case it will be scheduled for the current simulation time.

a <= '0' after 0 ns, '1' after 40 ns;
b <= '0' after 0 ns, '1' after 20 ns, '0' after 40 ns, ...
Cin <= '0' after 0 ns, '1' after 10 ns, '0' after 20 ns,
	   '1' after 30 ns, ...

Note: ellipses used above to condense code for viewing purposes only

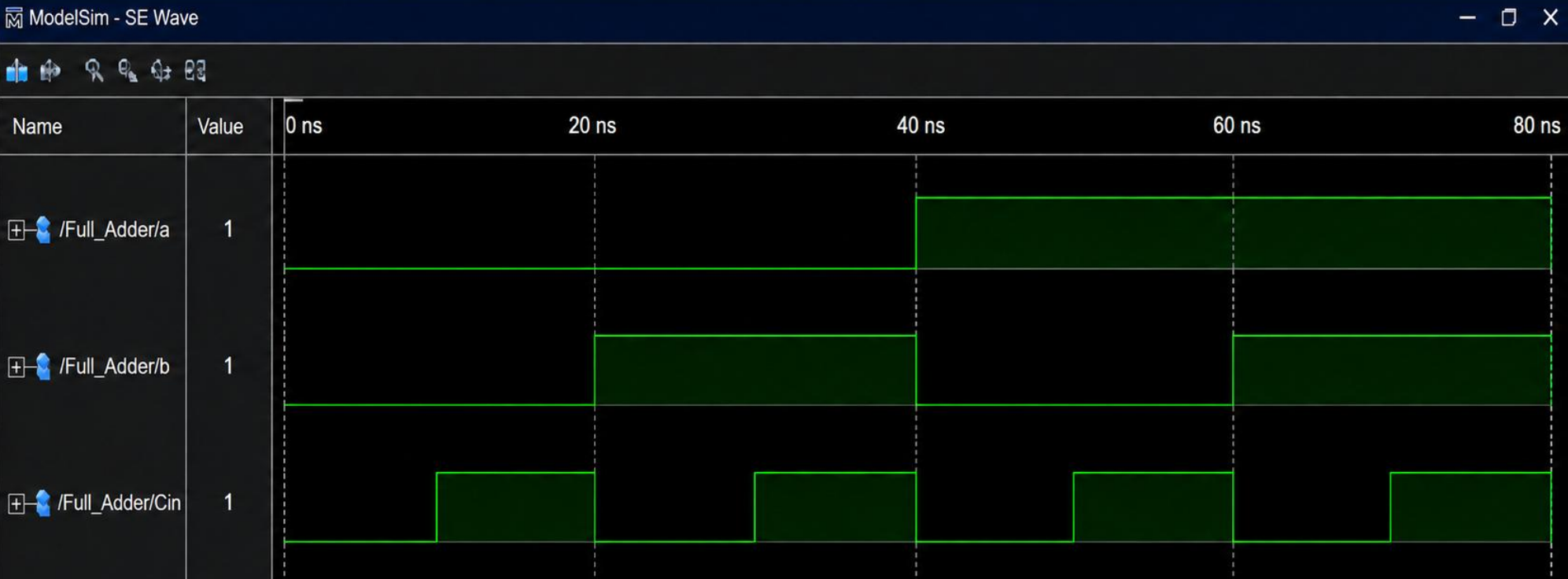

An example of the generated waveform from the VHDL above

VHDL Time Values

Time values in VHDL are represented in integer multiples of $1$ femtosecond (fs). You cannot use decimal values.

For example: $1.5$ ps can be represented exactly as $1500$ fs, but $1.5$ fs cannot be represented exactly.

One second is equal to $10^{15}$ fs.

See: WAIT Statements

ASSERT Statements

An ASSERT statement can be used to check a condition and then display a specified message if the condition is false. It can be used to develop full testbenches.

ASSERT condition [REPORT "message"] [SEVERITY severity_level];

ASSERT is a non-synthesisable statement. It can be used in both concurrent and sequential code.

assert (tb_sum = '0' and tb_cout = '0') report "Error for input 000: Expected tb_sum=0,tb_cout=0";

You can assign a severity level to indicate importance of the message:

-- severity_level can be:
NOTE -- information
WARNING -- possible problem
ERROR -- serious problem
FAILURE -- most severe problem

The default severity is ERROR.

The REPORT keyword can be used without ASSERT in which case it will always trigger. Its default severity is NOTE. Reports are useful for displaying information during operation (e.g. “Initialisation complete”).

---
